Microcontrollers

Use these tables to quickly locate details on Micro/sys ready-to-run microcontroller products

• » All-In-One PIC32 Microcontrollers with Ethernet, CAN, DIO, ADC
• » General Purpose Standalone Microcontrollers
• » StackableUSB™ Client & Host Microcontrollers

All-in-One PIC32 Microcontrollers with Ethernet, CAN, DIO, ADC

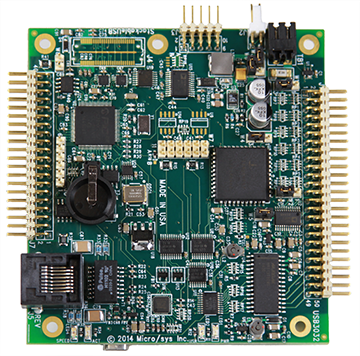

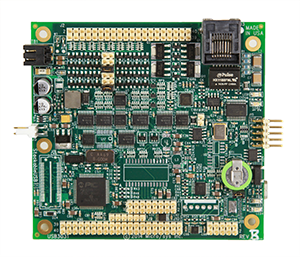

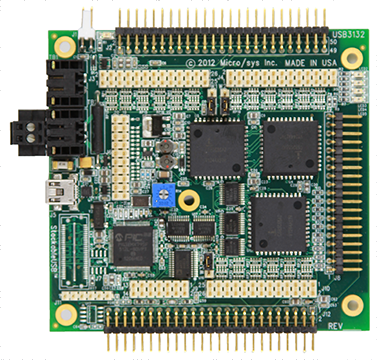

	USB3031	USB3032	USB3033	USB3201
Datasheet
Software Development	MPLAB® IDE with C Compiler	MPLAB IDE with C Compiler	MPLAB IDE with C Compiler	MPLAB IDE with C Compiler
CPU / Speed	PIC32 / 80Mhz	PIC32 / 80Mhz	PIC32 / 80Mhz	PIC32 / 80Mhz
Memory	128K RAM 512K Flash	128K RAM 512K Flash	128K RAM 512K Flash	32K RAM 512K Flash
EEPROM	256Kbit	256Kbit	256Kbit	256Kbit
Size/ Mounting	PC/104	PC/104	PC/104	PC/104
Digital I/O	16 High Current In/Out 4 High Current Out	24 @ 4 to 20mA 10 from PIC32	72 @ 4 to 20 mA 50 from PIC32
A/D	9-Channel, 10-bit, plus 8-Channel, 12-bit Option	9-Channel, 10-bit, plus 8-Channel, 12-bit Option	14-Channel, 10-bit	4-Channel, 10-bit
D/A	4-Channel, 12-bit Option	8-Channel, 12-bit Option
Networking	10/100 Ethernet	10/100 Ethernet
CAN	Yes	Yes	Yes	Yes
RS232/RS485	One RS232 RS485 Option	One RS232 RS485 Option	Two RS232	Two RS232
RTC	Battery Backed RTC	Battery Backed RTC	RTC
Watch dog timer	Yes	Yes	Yes	Yes
Timers / Counters	(3) Three	(3) Three	(5) Five	(5) Five
I2C BUS	in StackableUSB	in StackableUSB	in StackableUSB	in StackableUSB
SPI BUS	in StackableUSB	in StackableUSB	in StackableUSB	in StackableUSB
Temp Sensor	-55°C to +125°C	-55°C to +125°C
K-type Sensor	1 Input
PT100 Senor	1 Input
4x40 LCD			Header connection	320 x 240 LCD
Keypad			Header connection
Backlight Inverter Power			Yes	Yes
DC/DC Power	5V or 6.3 to 36V input	5V or 6.3 to 36V input	5V input	5V input
View

Back to Top

General Purpose Standalone Microcontrollers

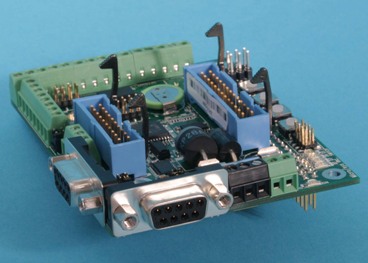

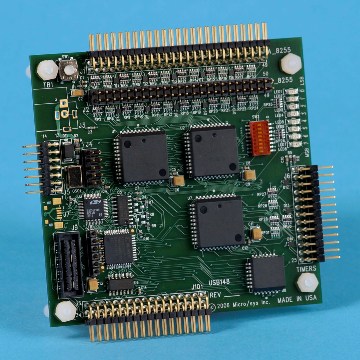

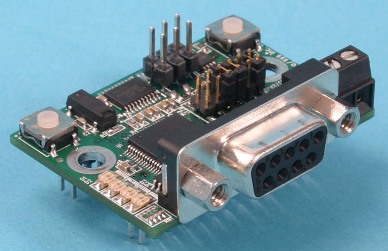

	MCB196, USB196	MCB148, USB148	MCB58	MCB08	MCB32	MCB24
Datasheet					Please Call	Please Call
Speed	48MHz	48MHz	40MHz	40Hz	80MHz	32MHz
RAM (Max)	4KB	4KB	4KN	4KB	32KB	15KB
Flash	64K	64K	60K	60K	512K	256K
Software Development	Keil uVision3	Keil uVision3	Metroworks Code C	Metroworks Code C	MPLAB IDE	MPLAB IDE
Serial Protocols	USB 2.0, COM1, COM2	USB 2.0, COM1, COM2	PC/104, RS232, RS48, CAN, I2C, COM1, COM2	RS232, I2C, COM1, COM2	USB 2.0, COM1, I2C, SPI	USB 2.0, COM1,, I2C, SPI
Extras	96 DIO, 1 channel 10 bit A/D, Watchdog Timer, Interrupt	53 DIO, 1 channel 10 bit A/D, Watchdog Timer, Interrupt	DIO, DAC, 5-30 VDC, RTC, LEDs, Ext Temp	DIO, ADC, Battery Op, Timers, PWM, 3.3VDC, Ext Temp	73 GPIO, 8 LEDs, PMP, RTC, Timers, 16 Channel 10 bit ADC, 4 Channel DMA	73 GPIO, 8 LEDs, PMP, RTC, Timers, 16 channel 10 bit ADC
Size	PC/104	PC/104	PC/104	1.7 x 1.2	¼ size 104	¼ size 104
View

Back to Top

StackableUSB™ Host & Client Microcontrollers

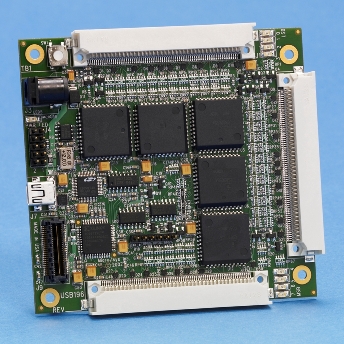

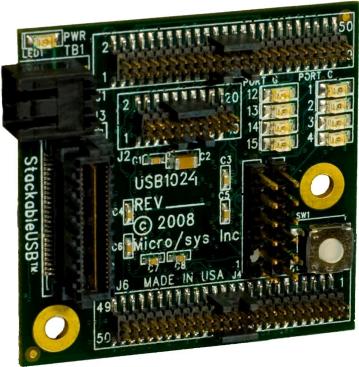

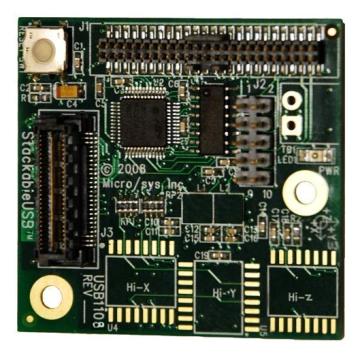

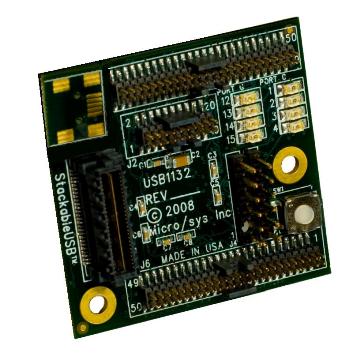

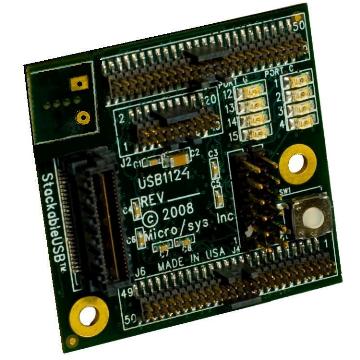

	USB1032	USB1024	USB1132	USB1124	USB1108	USB3148	USB3196
Datasheet
StackableUSB Host/Client	Host	Host	Client	Client	Client	Client	Client
CPU	PIC32	PIC24	PIC32	PIC24	SiLabs 8051	SiLabs 8051	SiLabs 8051
Speed	80MHz	32MHz	80MHz	32MHz	48MHz	48MHz	48MHz
RAM (Max)	32KB	16KB	32KB	16KB	4KB	4KB	4KB
Flash (Max)	512K	256K	512K	256K	64K	64K	64K
Software Developemnt	MPLAB IDE	MPLAB IDE	MPLAB IDE	MPLAB IDE	Keil uVision3	Keil uVision3	Keil uVision3
Serial Protocols	USB 2.0, COM1, I2C, SPI	USB 2.0, COM1, I2C, SPI	USB 2.0, COM1, I2C, SPI	USB 2.0, COM1, I2C, SPI	USB 2.0	USB 2.0, RS232, I2C, SPI	USB 2.0, RS232, I2C, SPI
Extras	8 LEDS,	32MHz	80MHz	32MHz	48MHz	48MHz	48MHz
Size	¼ size 104	¼ size 104	¼ size 104	¼ size 104	¼ size 104	PC/104	PC/104
View

Back to Top

Didn't find what you're looking for? Check our Single Board Computers, our ARM Computers, our Stackable Expansion Modules, or see an index of all Micro/sys products by part number.
