USB3031

PIC32™ Microcontroller with Ethernet, High Current DIO, 12-bit Analog



  • Microchip PIC32 CPU @ 80 MHz
  • 1.31 DMIPS/MHz peformnce
  • 512KB Flash, 128KB RAM memory
  • 1 Ethernet, 1 CAN, 1 RS232
  • 20 high current DIO, RTC, and Temp Sensor
  • 9-Channel 10-Bit A/D, optional 8-Channel 12-Bit
  • Optional 4-Channel, 12-Bit D/A
  • Wide range voltage input
  • MPLAB® IDE software development
  • Single-cycle multiply and high-performance divide
  • -40° to +85°C operation







Compare other PIC32 Microcontrollers

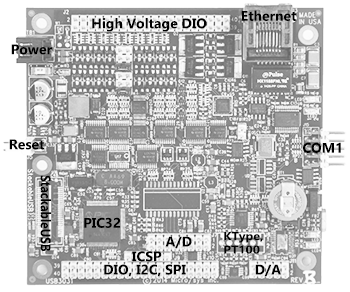

Ideal for data collection and communication, the USB3031 combines web hosting, networking,and industrial control on a compact PC/104 footprint. Multiple on-board protocols, including 10/100 Ethernet, CAN, RS232, RS485, USB, I2C, and SPI, makes protocol conversion a snap. Microchip’s PIC32 gives 1.56 DMIPS performance under 100mA of power, making the USB3031 battery friendly.

For control, there are 16 200mA digital I/O lines as well as 4 digital output lines with 500mA sink. The USB3031 has 9 channels of 10-bit A/D plus an optional 8 channels of 12-bit A/D that performs simultaneous conversions in 6u with -10V to +10V DC. Rounding out the industrial I/O are 4 channels of 12-bit D/A with -10V to +10V DC.

Other industrial I/O features include three timers, a programmable LED, battery-backed real-time clock, watchdog timer, and temperature sensor. I/O expansion is available with StackableUSB™ which accommodates up to (10) StackableUSB client industrial I/O boards.

USB3031 connects to desktop PCs and laptops via ICSP for development with Microchip’s easy-to-use MPLAB IDE software tools.

The UB3031 is the ideal solution for cost-sensitive control applications requiring supervisory management, mid-range data acquisition (DA), and peripheral control that is common to most industrial automation applications

Software Development: » MPLAB® IDE with C Compiler
PIC32: » 80 MHz
Memory:
  • » 128K RAM
  • » 512K Flash
EEPROM: » 256 Kbit
Digital I/O:
  • » 16 high current input/outputs
  • » 4 high current outputs
A/D:
  • » 9-Channel, 10-bit
  • » 8-Channel, 12-bit (Option)
D/A: » 4-Channel, 12-bit (Option)
Networking: » 10/100 RJ45 Ethernet
COM:
  • » 1 CAN
  • » 1 RS232
  • » 1 RS485 (Option)
  • » 1 I2C
  • » 1 SPI
Timers:
  • » 1 Watch Dog timer
  • » 3 Timers/Counters
DC/DC Power: » 5V or 6.3 to 36V input
Mechanical: » PC/104
See datasheet for complete specs

» Microchip PIC32 Resources

» Microchip MPLAB IDE Resources

» About StackableUSB

» Samtec StackableUSB Connector Specification

USB3031 PIC32™ Microcontroller with Ethernet, High Current DIO, 12-bit Analog $250*
  • 3031OPT8
  • 3031OPT11
  • 3031OPT12
  • 3031OPT60-1
  • 3031OPT60-2
  • COM2 RS485
  • 12-bit, 8-Channel A/D
  • 12-bit, 4-Channel D/A
  • StackableUSB Host (Top)
  • StackableUSB Client (Bot)
  • $10
  • $75
  • $75
  • $25
  • $25
*Single quantity pricing. OEM discounts available. Contact us for volume pricing.


DK3031-A Development Kit for USB3031 with Microchip PicKit3 Programmer $495
  • USB3031
  • CS3031
  • Programmer
  • Sample Software
  • PIC32 Microcontroller
  • Complete Cable Set for USB3031
  • Microchip PicKit3 Programmer
  • Licensed for use with USB3031
  • Incl
  • Incl
  • Incl
  • Incl

DK3031-B Development Kit for USB3031 with Microchip IDC3 Programmer $695
  • USB3031
  • CS3031
  • Programmer
  • Sample Software
  • PIC32 Microcontroller
  • Complete Cable Set for USB3031
  • Microchip IDC3 Programmer
  • Licensed for use with USB3031
  • Incl
  • Incl
  • Incl
  • Incl


BA0040 40-pin Terminal Breakout Board $65
CA4020 RS232 Adapter Cable $25
CA4142 In-Circuit Serial Programming $25
CA4133 10/100 Ethernet Cable $25
CA4136 USB 2.0 Type-A to Mini-B $25


USB3031 PIC32 Microcontroller with 20 DIO, 12-bit Analog
(Stack to double system peripherals)
$250
USB3032 PIC32 Microcontroller with 24 DIO, 12-bit Analog
(Stack to double system peripherals)
$250
USB1350 10/100 Ethernet Interface More details
USB1410 Micro SD Memory Card Reader More details
USB1411 NAND Flash Solid State Drive (SSD) More details
USB1601 USB HID Accelerometer More details
I2C1610 Environmental I2C Sensor More details
*Expansion modules require 3031OPT60-1
