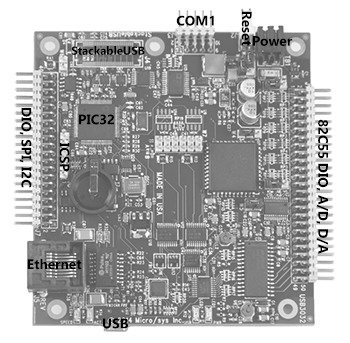

USB3032

PIC32™ Microcontroller with Ethernet, 34 DIO, 12-bit Analog



  • Microchip PIC32 CPU @ 80MHz
  • 1.31 DMIPS/MHz performance
  • 512KB Flash, 128KB SRAM Memory
  • 1 Ethernet, 1 CAN, 1 RS232
  • 34 DIO, RTC, Timers, and Temp Sensor
  • 9-Channel, 10-Bit A/D, optional 8-Channel, 12-bit
  • Optional 4-Channel, 12-bit D/A
  • Wide range voltage input
  • MPLAB® IDE software development
  • Single-cycle multiply and high-performance divide
  • -40° to +80° C operation







Compare other PIC32 Microcontrollers

Ideal for data collection and data transmission, the USB3032 combines web hosting, networking, and industrial control. Multiple on-board protocols, including 10/100 Ethernet, CAN, RS232, RS485, USB, I2C, and SPI make protocol conversion a snap. Microchip’s PIC32 gives 1.56 DMIPS performance using under 100mA of power, making the USB3032 battery friendly.

For control, there are 24 digital I/O lines and 9 channels of 10-bit A/D. An additional 8 channels of 12-bit A/D and 8 channels of 12-bit D/A are available. Additional system features include three timers, a programmable LED, battery-backed real-time clock, watchdog timer, and a temperature sensor. I/O expansion is available via StackableUSB™, which accommodates up to ten StackableUSB™ client industrial I/O boards.

USB3032 connects to desktop PCs and laptops for development with Microchip’s easy-to-use MPLAB IDE software tools via ICSP.

USB3032 is the ideal solution for cost-sensitive control applications requiring supervisory management, mid-range data acquisition (DA), and peripheral control that is common to most industrial automation applications.

Software Development: » MPLAB® IDE with C Compiler
PIC32: » 80 MHz
Memory:
  • » 128K RAM
  • » 512K Flash
EEPROM: » 256 Kbit
Digital I/O:
  • » 24 @ 4 to 20mA
  • » 10 from PIC32
A/D:
  • » 9-Channel, 10-bit
  • » 8-Channel, 12-bit (Option)
D/A: » 4-Channel, 12-bit (Option)
Networking: » 10/100 RJ45 Ethernet
COM:
  • » 1 CAN
  • » 1 RS232
  • » 1 RS485 (Option)
  • » 1 I2C
  • » 1 SPI
Timers:
  • » 1 Watch Dog Timer
  • » 3 Timers/Counters
DC/DC Power: » 5V or 6.3 to 36V input
Mechanical: » PC/104
See datasheet for complete specs

» Microchip PIC32 Resources

» Microchip MPLAB IDE Resources

» About StackableUSB

» Samtec StackableUSB Connector Specification

USB3032 PIC32 Mirocontroller with Ethernet & CAN $250*
  • 3032OPT8
  • 3032OPT11
  • 3032OPT12
  • 3032OPT60-1
  • 3032OPT60-2
  • COM2 RS485
  • 12-bit 8-Channel A/D
  • 12-bit 4-Channel D/A
  • StackableUSB Host (Top)
  • StackableUSB Client (Bot)
  • $10
  • $75
  • $75
  • $25
  • $25
*Single quantity pricing. OEM discounts available. Contact us for volume pricing.


DK3032-A Development Kit for USB3032 with Microchip PicKit3 Programmer $495
  • USB3032
  • CS3032
  • Programmer
  • Sample Sotware
  • PIC32 Microcontroller
  • Complete Cable Set for USB3032
  • Microchip PicKit3 Programmer
  • Licensed for use with USB3032
  • Incl
  • Incl
  • Incl
  • Incl

DK3032-B Development Kit for USB3032 with Microchip IDC3 Programmer $695
  • USB3032
  • CS3032
  • Programmer
  • Sample Sotware
  • PIC32 Microcontroller
  • Complete Cable Set for USB3032
  • Microchip IDC3 Programmer
  • Licensed for use with USB3032
  • Incl
  • Incl
  • Incl
  • Incl


BA0050 50-pin Terminal Breakout Board $65
BA0040 40-pin Terminal Breakout Board $65
CA4089 RS232 Breakout Cable $25
CA4142 In-Circuit Serial Programming $25
CA4133 10/100 Ethernet Cable $25
CA4136 USB 2.0 Type-A to Mini-B $25


USB3031 PIC32 with Ethernet, CAN, 20 High Current DIO, 12-bit Analog
(Stack to double system peripherals)
$250
USB3032 PIC32 with Ethernet, CAN, 24 DIO, 12-bit Analog
(Stack to double system peripherals)
$250
USB1350 10/100 Ethernet Interface More details
USB1410 Micro SD Memory Card Reader More details
USB1411 NAND Flash Solid State Drive (SSD) More details
USB1601 USB HID Accelerometer More details
I2C1610 Environmental I2C Sensor More details
*Expansion modules require 3032OPT60-1


USB3031 PIC32 with Ethernet, CAN, 20 High Current DIO, 12-Bit Analog More details
USB3033 PIC32 with Ethernet, CAN, 122 DIO, 10-Bit Analog, plus LCD & Keypad Interface More details
USB3201 PIC32 with LCD/Touchscreen Interface More details


PIC24™ Microcontrollers

USB1024 PIC24™ Industrial Host StackableUSB™ Microcontroller More details
USB1124 PIC24™ Industrial Client StackableUSB™ Microcontroller More details


8051 Microcontrollers

MCB148 High Density Digital I/O and Timer Microcontroller More details
MCB196 High-Density Digital I/O Microcontroller More details


HC08 Microcontrollers

MCB08 General Purpose HC08 SNAP Microcontroller More details
MCB58 Industrial HC08 SNAP Microcontroller More details
