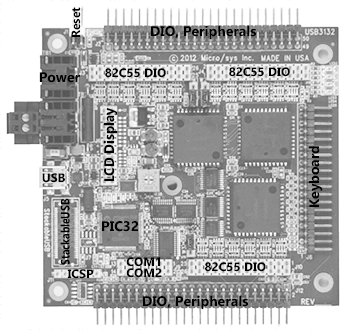

USB3033

PIC32™ Microcontroller with 122 DIO, 10-bit Analog, Keypad/LCD Interface



  • Microchip PIC32 CPU @ 80MHz
  • 1.31 DMIPS/MHz performance
  • 512KB Flash, 128KB SRAM Memory
  • 1 USB On-the-Go
  • 1 CAN, 2 RS232
  • 122 DIO, 5 Timers, Real Time Clock
  • 14-Channel, 10-Bit A/D
  • LCD, Keypad Interface
  • MPLAB® IDE software development
  • -40° to +80° C operation


Compare other PIC32 Microcontrollers

Ideal for data collection and communication, the USB3031 combines web hosting, networking, and industrial control on a compact PC/104 footprint. Multiple on-board protocols, including 10/100 Ethernet, CAN, RS232, RS485, USB, I2C, and SPI, makes protocol conversion a snap. Microchip’s PIC32 gives 105 DMIPS performance under 100mA of power, making the USB3031 battery friendly.

For control, there are (16) 200mA digital I/O lines as well as (4) digital output lines with 500mA sink. USB3031 has 9 channels of 10-bit A/D and an optional 8 channels of 12-bit A/D that, plus an optional (4) channels of 12-bit D/A. Other industrial I/O features include three timers, a programmable LED, battery-backed real-time clock, watchdog timer, and a temperature sensor. I/O expansion is available with StackableUSB™, which accommodates up to (10) client industrial I/O boards.

USB3031 connects to desktop PCs and laptops via ICSP for development with Microchip’s easy-to-use MPLAB® IDE software tools.

UB3031 is the ideal solution for cost-sensitive control applications requiring supervisory management, mid-range data acquisition, and peripheral control.

Software Development: » MPLAB® IDE with C Compiler
PIC32: » 80 MHz
Memory:
  • » 128K RAM
  • » 512K Flash
EEPROM: » 256 Kbit
Digital I/O:
  • » 72 @ 4 to 20mA
  • » 50 from PIC32
A/D: » 14-Channel, 10-bit
COM:
  • » 1 CAN
  • » 2 RS232
  • » 1 I2C
  • » 1 SPI
Timers:
  • » 1 Watch Dog Timer
  • » 5 Timers/Counters
LCD Display Interface:
  • » Output to 4x40 LCD character display
  • » Constant current backlight voltage source
Keypad Interface: » Output to 4x5 keypad
DC/DC Power: » 5V
Mechanical: » PC/104
See datasheet for complete specs

» Microchip PIC32 Resources

» Microchip MPLAB IDE Resources

» About StackableUSB

» Samtec StackableUSB Connector Specification

USB3033 PIC32™ Microcontroller with 122 DIO, 10-bit Analog, Keypad/LCD Interface $250*
*Single quantity pricing. OEM discounts available. Contact us for volume pricing.


DK3033-A Development Kit for USB3033 with Microchip PicKit3 Programmer $495
  • USB3033
  • CS3033
  • Programmer
  • Sample Software
  • PIC32 Microcontroller
  • Complete Cable Set for USB3033
  • Microchip PicKit3 Programmer
  • Licensed for use with USB3033
  • Incl
  • Incl
  • Incl
  • Incl

DK3033-B Development Kit for USB3033 with Microchip IDC3 Programmer $695
  • USB3033
  • CS3033
  • Programmer
  • Sample Software
  • PIC32 Microcontroller
  • Complete Cable Set for USB3033
  • Microchip IDC3 Programmer
  • Licensed for use with USB3033
  • Incl
  • Incl
  • Incl
  • Incl


BA0050 50-pin Terminal Breakout Board $65
BA0040 40-pin Terminal Breakout Board $65
CA4089 RS232 Breakout Cable $25
CA4142 In-Circuit Serial Programming $25
CA4133 10/100 Ethernet Cable $25
CA4136 USB 2.0 Type-A to Mini-B $25


USB3031 PIC32 Microcontroller with 20 DIO, 12-bit Analog
(Stack to double system peripherals)
$275
USB3032 PIC32 Microcontroller with 24 DIO, 12-bit Analog
(Stack to double system peripherals)
$275
USB1350 10/100 Ethernet Interface More details
USB1410 Micro SD Memory Card Reader More details
USB1411 NAND Flash Solid State Drive (SSD) More details
USB1601 USB HID Accelerometer More details
I2C1610 Environmental I2C Sensor More details
*Expansion modules require 3032OPT60-1
