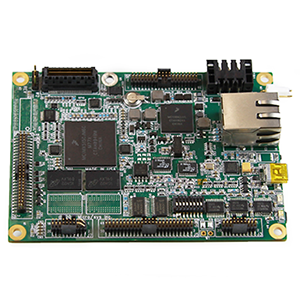

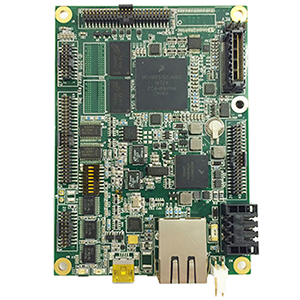

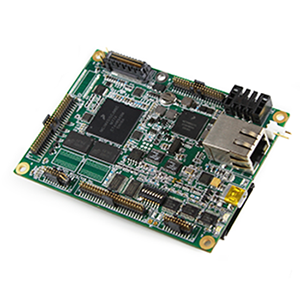

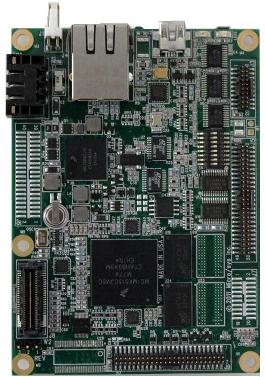

iMX515 ARM® Cortex® Computer, MIPI CSI Vision, Linux, Pico-ITX

The SBC5651 is ideal for applications requiring small, low-power SBCs typical in medical, data collection, and test and measurement systems. With Freescale’s i.MX515 ARM Cortex-A8 multimedia processor at its core, the SBC5651 effortlessly interfaces to a CSI CMOS camera module for functions such as OCR, bar code scanning, edge detection, and real time video or video capture. Users can control speed and power use by adjusting processor speeds up to 800 MHz.

On-board I/O features include an LCD touchscreen for LVDS and TFT, LED backlight control, keypad interface, audio, watchdog timer, two PWM outputs, 1-wire interface, plus the features listed above. Analog expansion via USB, SPI, and I2C is available through StackableUSB™.

The Linux BSP for the SBC5651 is built through Yocto and installed on an SD card, making the board ready to program. Users can connect to their workstation via Ethernet to access their preferred Linux programming tools. Access to both OpenCV and GStreamer is available, as are sample programs for simple video applications.

Processor:	» NXP Freescale i.MX5 » ARM Cortex-A8 » 800MHz (600 MHz, Extended Temp)
Memory:	» 512MB DDR2 » 4MB NOR Flash » 4GB NAND Flash » 2 SD/MMC Card Slots
COM:	» 3 RS232/RS485 Configurable Serial Ports » 3 USB 2.0 » SPI » I2C » CAN
Networking:	» 10/100 Ethernet
DIO:	» Up to 24 TTL programmable bi-directional signals
Audio/Video:	» Microphone/Headphone In/Out » TFT LCD Interface » LVDS LCD Interface (Option)
Vision:	» MIPI CSI
Power:	» 5V Supply
Timers:	» Real Time Clock » Watchdog Timer
Operating System:	» Linux » Android » WinCE
Mechanical:	» PC/104
See datasheet for complete specs

» Datasheet

» User's Manual

» Cable Set

» NXP Freescale i.MX515 Resources

» About StackableUSB

» Samtec StackableUSB Connector Specification

» MIPI CSI Specification

SBC5651	i.MX515 ARM Cortex-A8, 800MHz with MIPI CSI on Pico-ITX
SBC5651-ET	i.MX515 ARM Cortex-A8, 600MHz with MIPI CSI on Picto-ITX, Extended TEmp
5651OPT1 5651OPT7 5651OPT8-2 5651OPT8-4 5651OPT22 5651OPT28 5651OPT45 5651OPT60	Upgrade to 512MB SDRAM Upgrade to 4GB Flash Configurable RS485 Configurable RS485 CAN Bus Interface LVDS Panel Support Audio Interface StackableUSB Host
* Add "-ET" to 5651OPTxx for Extended Temp options

DK5651	Development Kit for SBC5651
SBC5651 CS5651 Sample Software	i.MX5 ARM Cortex-A8 with MIPI CSI on Pico-ITX Complete Cable Set for SBC5651 Licensed for use with SBC5651
DKV5651	Vision Development Kit for SBC5651
SBC5651 CAMStack™ Camera CS5651 Sample Software	i.MX5 ARM Cortex-A8 with MIPI CSI on Pico-ITX CAMStack™ for MIPI CSI Complete Cable Set for SBC5651 Licensed for use with SBC5651
See more Vision Development Kit products

BA2020	20-Pin High Density Breakout Assembly
BA4052	50-Pin High Density Breakout Assembly
CA4133	RJ45 Ethernet Cable
CA4136	Mini-AB USB Cable

USB3031	PIC32 Microcontroller with 20 DIO, 12-bit Analog (Stack to double system peripherals)	More Details
USB3032	PIC32 Microcontroller with 24 DIO, 12-bit Analog (Stack to double system peripherals)	More Details
USB3033	PIC32 Microcontroller with 72 DIO, 12-bit Analog, LCD/Keypad Interface	More Details
USB1350	10/100 Ethernet Interface	More details
USB1410	Micro SD Memory Card Reader	More details
USB1411	NAND Flash Solid State Drive (SSD)	More details
USB1601	USB HID Accelerometer	More details
I2C1610	Environmental I2C Sensor	More details
*Expansion modules require 5651OPT60
