Subfloor for PC/104, 5" x 5", EPIC, and EBX
Computer Boards
  • Black anodized aluminum with steel thread inserts
  • Mounting for industry standard CPU form factors
  • Removable side panels
  • Raised floor provides protected area for cable routing
  • Multiple connector and fan cutouts
  • Over 100 pieces of mounting hardware plus a screwdriver to ease assembly
  • Custom features available

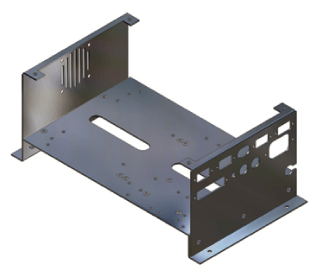

Subfloor with Fan and Connector
sides attached
The ENC104-2 subfloor is an ideal packaging solution for PC/104, 5”x 5”, EPIC, and EBX-sized computer boards in applications requiring open frame mounting. The ENC104-2 has mounting holes for Snap Microcontroller boards, DIN Rail, various power supply solutions, a fan, floppy/hard drives, cables, screw terminals and breakout boards.

The ENC104-2 side panels can be removed. Left in place, they provide mounting locations for AC line-filter, fan, four DB9 connectors, a DB25 connector, power switch, reset switch and pass-through holes for various cables.

The subfloor is raised 1.1” allowing cables to pass below the assembly. Standard floppy/ hard drives can also be mounted below the subfloor. Screw terminal boards can be mounted to provide easy and secure connection of system I/O.

The ENC104-2 is easily mounted into a rack as a single unit or embedded into your chassis by
using the four external mounting holes. This makes field service and maintenance easier and faster.
